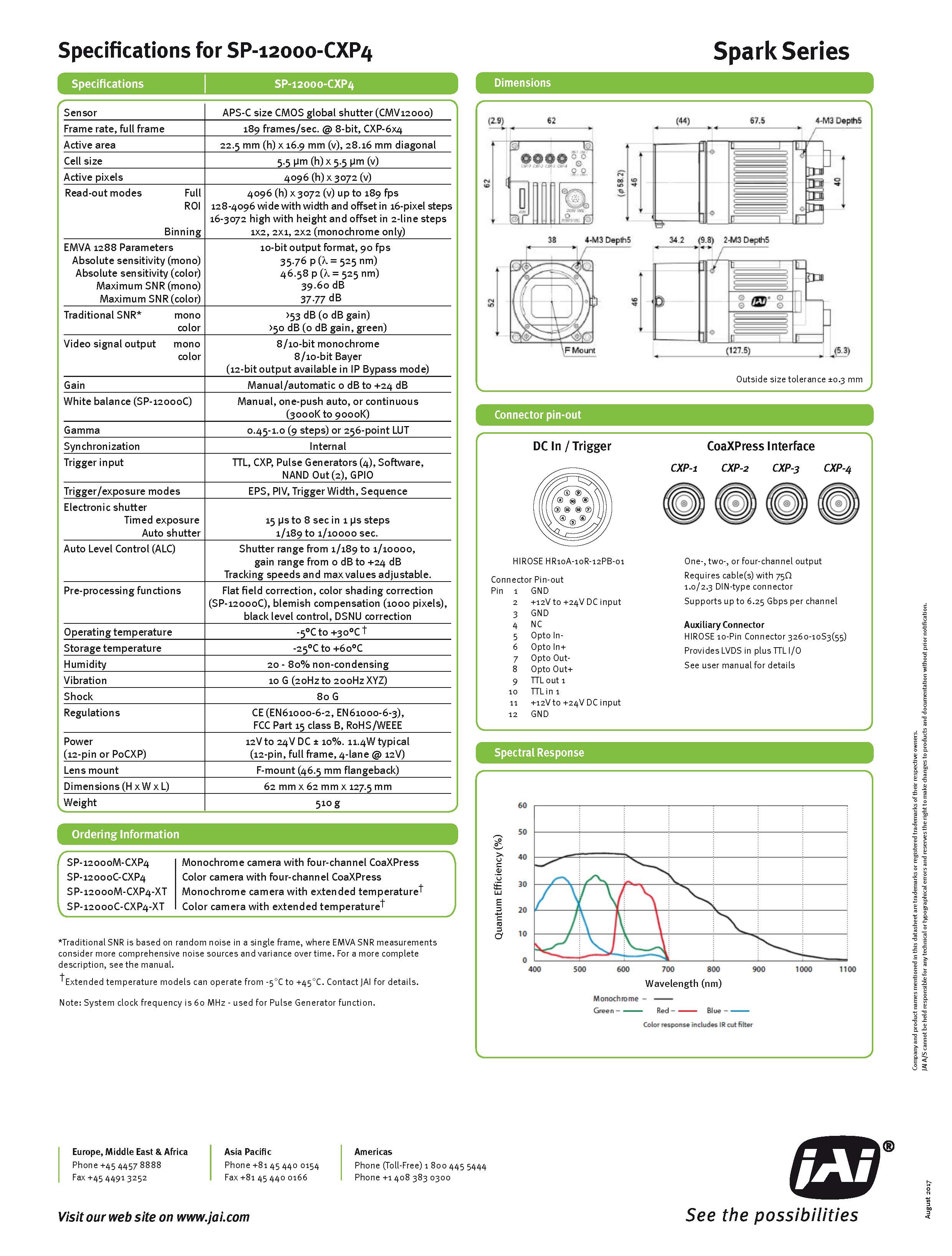

JAI SP-12000-CXP4 1200萬CXP工業(yè)相機(jī)
?? Large format 12 MP CMOS imager (global shutter)
?? APS-C optical format with 28.16 mm diagonal
?? Up to 189 fps at full resolution
?? 5.5 μm square pixels in a 4:3 aspect ratio
?? Exposure control from 15 μs to 8 seconds in 1 μs steps
?? Single- and multi-ROI modes for flexible readout, windowing, or increasing frame rate
?? Flat-field and blemish compensation plus in-camera CMOS pattern correction
?? Built-in high dynamic range function provides up to 90 dB dynamic range (monochrome only)
?? 2X binning for increased sensitivity (monochrome only)
?? Automatic Level Control (ALC) for dynamic lighting conditions
?? 8/10-bit digital output over four-channel CoaXPress interface
?? Monochrome or Bayer color models available
?? 12-pin connector for power and GPIO, plus additional I/O via 10-pin auxiliary connector
?? F-mount lens mount
在線咨詢
?? APS-C optical format with 28.16 mm diagonal
?? Up to 189 fps at full resolution
?? 5.5 μm square pixels in a 4:3 aspect ratio
?? Exposure control from 15 μs to 8 seconds in 1 μs steps
?? Single- and multi-ROI modes for flexible readout, windowing, or increasing frame rate
?? Flat-field and blemish compensation plus in-camera CMOS pattern correction
?? Built-in high dynamic range function provides up to 90 dB dynamic range (monochrome only)
?? 2X binning for increased sensitivity (monochrome only)
?? Automatic Level Control (ALC) for dynamic lighting conditions
?? 8/10-bit digital output over four-channel CoaXPress interface
?? Monochrome or Bayer color models available
?? 12-pin connector for power and GPIO, plus additional I/O via 10-pin auxiliary connector
?? F-mount lens mount
